At last, an affordable, full service, high quality transverse duct connector machine!!!


It is versatile, too. This 14 station roll former comes standard with the T-D-P rolls and the Clip rolls outboard, leaving the center tool space for other profile rolls. This T-D-P roll former will roll sheet metal into leak proof, sealable T-D-P flanges at speeds of up to 50 fpm, automatically! Start saving time and money by forming your own T-D-P flanges – with their snap on corners – and eliminate spot welding altogether. The T-D-P roll former works with Autolock stiffeners to greatly reduce tie rod and angle iron use.

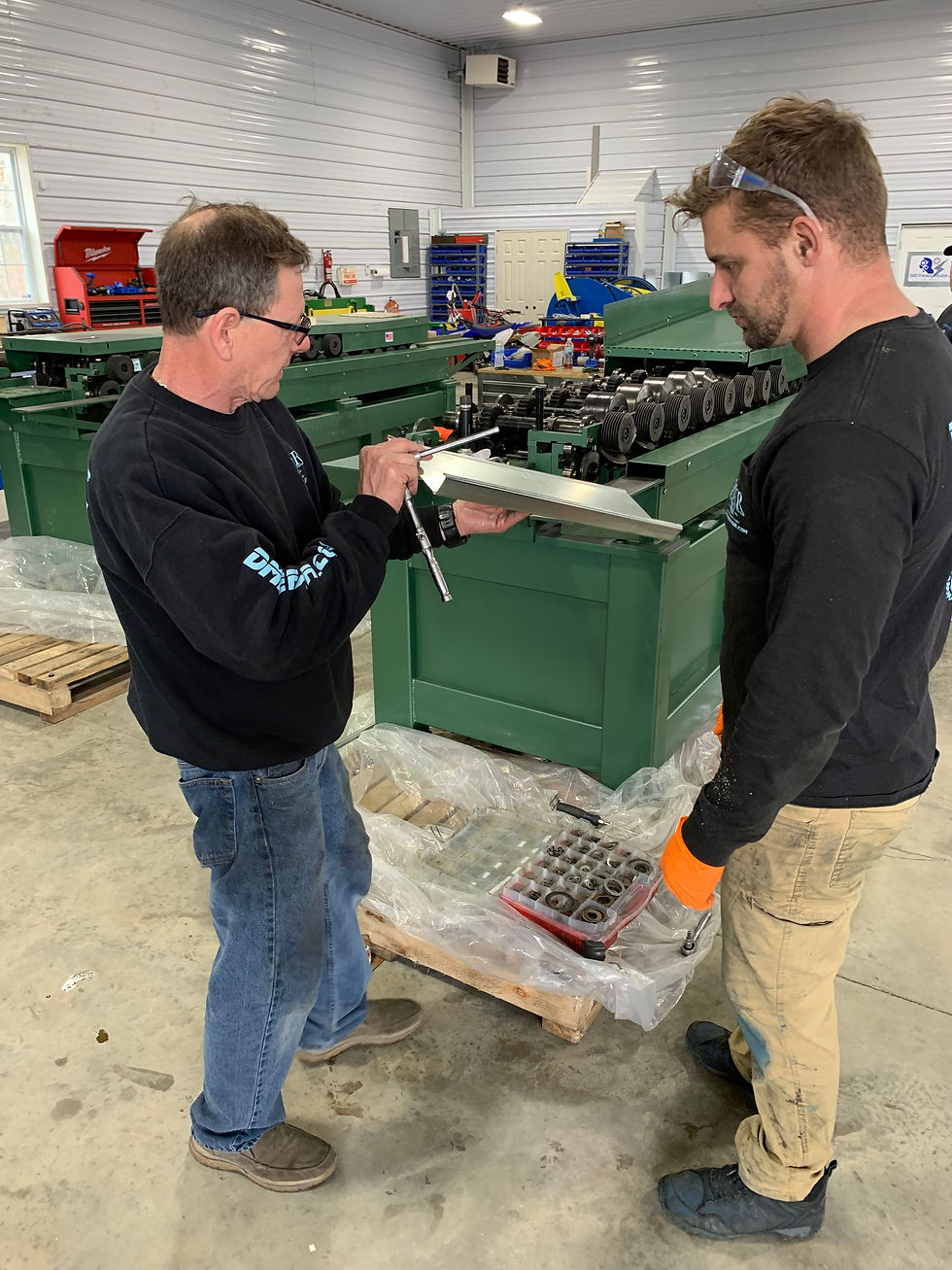

TK T-D-P Roll Former (w/TDP & Clip Rolls)

    • Weight: 3450 lbs
    • Dimensions: 38 x 136.75 x 46 in
    • Capacity: T-D-P 18-24 ga. for T-D-P Uses approx. 1-7/8″ of material on T-D-P 50 feet per minute T-D-P Clip (min. length 20″) 22 ga. 2-1/8″ 2 1/8″
    • Forming Sections: 14
    • Shaft Diameter: 1.25″
    • Passline: 38.625″
    • Forming Speed: 50fpm
